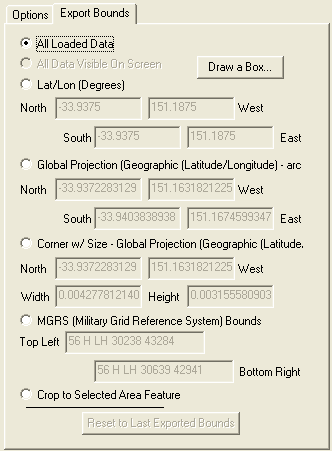

Export Bounds Panel

The Export Bounds panel provides several different method for specifying the subset of the currently loaded data that the user wishes to export. Each of these methods is described below. Note that regardless of the method used to specify the bounds, the exported data will be generated in the currently selection global projection.

All currently loaded data that is compatible with the current export type will be exported. This is the default selection.

All data that is currently visible in the Global Mapper view window will be exported.

Allows the user to specify the subset to export as a bounding box in latitude/longitude coordinates. The default values automatically filled in are the lat/lon bounds of all currently loaded compatible data.

Allows the user to specify the subset to export as a bounding box using coordinates in the currently selected global projection system. The default values automatically filled in are the bounds of all loaded compatible data.

Allows the user to specify the subset to export by entering the northwest corner of the bounding box to export followed by the width and height of the desired area to export. The coordinates entered must be in the currently selected global projection system. The default values automatically filled in result in a bounding box containing all loaded compatible data.

Allows the user to specify the subset to export by entering the northwest and southeast corners of the bounding box to export in MGRS coordinates. The default values automatically filled in result in a bounding box containing all loaded compatible data.

If enabled, allows the user to crop the export to the currently selected area feature(s). To use this for supported exports, select the area(s) that you wish to crop the export to using either the Feature Info Tool or the Digitizer Tool.

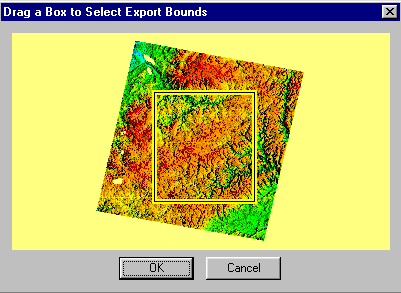

Pressing the Draw Box... button brings up the Drag a Box to Select Export Bounds dialog. In this dialog, simply hold down the left mouse button and drag a rectangle around the area of the image that you wish to export. If you make a mistake, just drag another rectangle.

When you press the OK button, the bounds of the rectangle that you drew will automatically be inserted into the appropriate controls in the Export Bounds panel.
